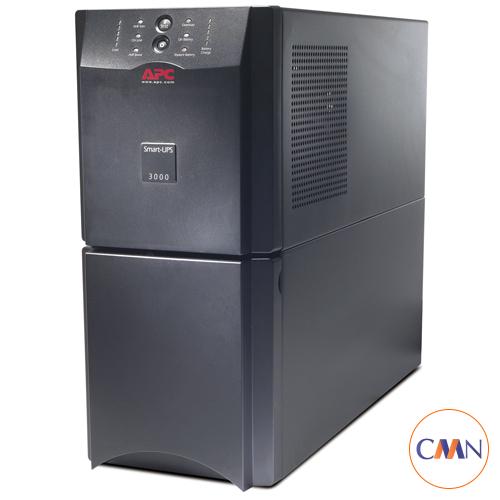

APC tower ups

Price On Call:
042-35873668
0321-9425218
Category:
UPS
Brand:
APC
Model:
APC
Quantity:
100
Discount:
0
Product Type:
New
Stock:
Available
Product:
None Of These
Description: Visit Webshop
OutputOutput Power Capacity: 330 W / 550 VA
Max Configurable Power 330 W / 550 VA
Nominal Output Voltage: 120 V
Output Frequency: (sync to mains) 50/60 Hz +/- 3 Hz
Topology: Standby
Waveform Type: Stepped approximation to a sinewave
Output Connections:
4 x NEMA 5-15R (Battery Backup)
4 x NEMA 5-15R (Surge Protection)
InputNominal Input Voltage: 120V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 5 feet (1.52 meters)
Input voltage range for main operations: 88 - 139V
Surge Energy RatingSurge energy rating: 354 Joules
Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector),Network line - 10/100 Base-T Ethernet (RJ-45 connector),Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
BatteryType: Maintenance-free sealed lead-acid battery with leakproof suspended electrolyte
Replacement Battery Cartridge: APCRBC110
Typical Recharge Time24 hours
Surge Energy Rating340 Joules
FilteringFull time multi-pole noise filtering: 5%
IEEE surge let-through: Zero clamping
Response Time : Meets UL 1449
Data Line ProtectionAnalog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector), Coaxial cable for ATV/SATV/modem/Audio-Video (coax connector)
Audible AlarmAlarm when on battery, distinctive low-battery alarm, configurable delays
ConformanceRegulatory Approvals: FCC Part 15 Class B,FCC Part 68,NOM,UL 1778
Equipment protection policy: Lifetime : $75000
Environmental Compliance: RoHS
Environmental RequirementsOperating
Temperature: 32-104°F / 0-40°C
Humidity: 5-95%
Altitude: 0-10,000' / 0-3000 m

Storage
Temperature: 5-113°F / -15-45°C
Humidity: 5-95%
Altitude: 0-50,000' / 0-15,000 m
Online Thermal Dissipation: 47.00 BTU/hr
Dimensions (WxHxD)3.5 x 7.1 x 11.9" / 88 x 180 x 302 mm
Weight12.1 lb / 5.5 kg
