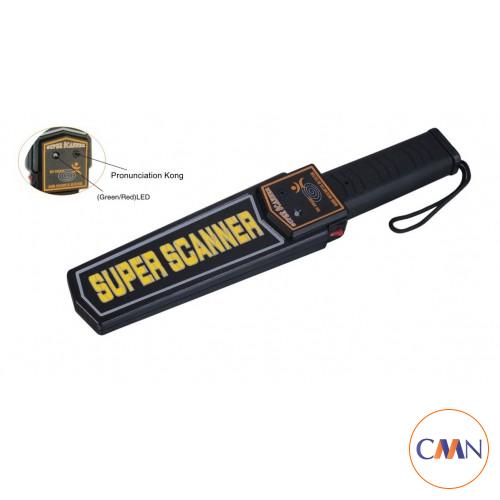

Super Scanner Metal Detector
Hand held Metal Detector designed to safeguard security-sensitive areas
like schools, courtrooms, corrections facilities, sports events, businesses,
night clubs, bars and other public areas and events.
The Super Scanner is a high performance Hand Held Metal Detector designed to meet the exact requirements of the security industry. Typical uses will include body search for offensive weapons in crowd control, airport and border security, checking parcels and letters for metal objects and anywhere that hidden metal needs to be detected.
The Super Scanner Operates on one 9volt standard or rechargeable battery. To install the battery, slide off the battery cover and place the battery in to its compartment while matching the +/- symbols.
Turn the unit on by pushing the on/off switch until it clicks on and the green LED is lit. The detector is now operational although and increase in sensitivity and depth range can be achieved by turning the sensitivity adjuster until the LED turn to red and a constant audio tune is heard.. Turn the sensitivity adjustor (anti-clockwise) until the red LED just turn to green the tone fades. The detector is now tuned for optimal sensitivity and depth rage.
Holding the unit with the detection face towards the surface, sweep backwards and forwards continuously at a height of 10-30mm above the area to be scanned.
The presence of metal will be indicated by the audio warning tone and the red light coming on. If the detector is held still over a metal object the detection signal will automatically reduce, therefore it is important that the unit is continually scanning the surface when in use.
Performance and features:
Easy to operate, equipped with leather case, for carrying
1, detection sensitivity: ?2.5mm Ball
2, power supply: 9 volt battery (6F22ND)
3, Power consumption: 270mW
4, operating frequency: 22KHz
5, the working current: less than 50mA
6, the working temperature: -5 ? -55 ?
7, Net Weight: 409g
8, size: 410 * 85 * 45mm
9, packing size: 580 * 330 * 460mm (25 support / box, weight: 12.5KG/13.5KG)
